Features :

1. Single control of test plates
2. Hydraulically operated test plates
3. Plate movement in counter direction (6 ways) and (8 ways)

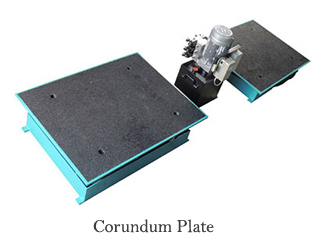

4. Material coatink corundum or asphalt or Boardes
5. Check of: axle suspension, axle stub, wheel bearing, tie-rod ends, stabiliser, trolley pivot, twin-axle suspension, trailer coupling device
6. Easy and convenient operation owing to single-touch mode
7. Automatic or manual operation at choice
8. Automatic centering after testing simulation (C-PD)
9. Hydraulic, unit and control cabinet
10. Radio remote control with LED lamp
11. Test lamp with long-life LEDs
12. Keypad with oil- and petro-resistant foil

Specification :

1. Maximum axle load:
1. C-PD52: 16000kg
2. C-PD72: 18000kg
3. C-PD82: 20000kg
2. Whee Load Range:
1. C-PD52: 8000kg
2. C-PD72: 9000kg
3. C-PD82: 10000kg
3. Dimension Plate foundation C-PD series:
1. C-PD52-XL: 750 x 900 x 10mm
2. C-PD72-XL: 750 x 900 x 10mm
3. C-PD82-XL: 750 x 900 x 16mm
4. C-PD72: 750 x 750 x 14mm
4. Max trust per site: 30 kN
5. Testing speed: 5-15 cm/s
6. Needed hydraulic oil amount: 30 Liters
7. Hydraulic oil type HLP46
8. Weight: 600 Kg
9. Max hydraulic pressure: 120 Bar
10. Motor power: 4 kW
11. Hydraulic dimension: C-PD52: 550 x 510 x 700mm
12. Power Supply: AC400V/50Hz, AC230V/60Hz with grounding
