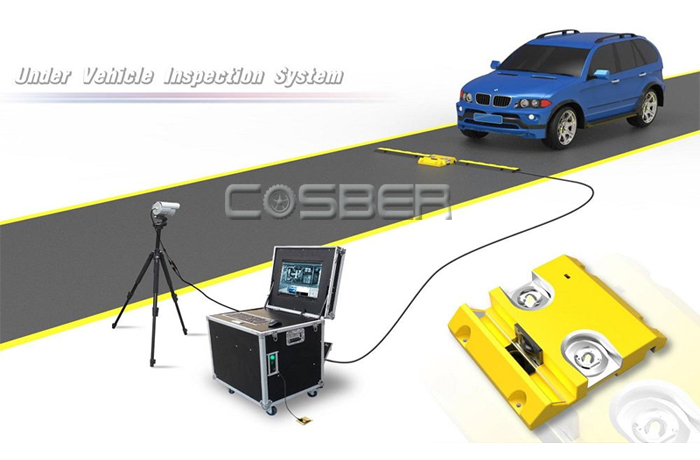

CHASSIS SCANNING SYSTEM | DISTRIBUTOR PERALATAN PENGUJIAN KENDARAAN BERMOTOR

Kita harus melindungi diri dari ancaman ini dengan meningkatkan langkah-langkah keamanan. Efisiensi dan kualitas staf keamanan Anda dapat ditingkatkan dengan menggunakan teknologi modern tanpa harus bersentuhan langsung dari objek yang mencurigakan. Dan dapat mengatasi secara cepat sesuatu hal-hal yang tidak diinginkan.

Features :

Automatic digital line scan camera, with high-resolution and clarity of the image.
The complete image of chassis scanning, without any omissions and the image is clear, complete, no distortion, can be clearly observed that the object is not less 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Display of chassis power, acceleration time, spot speed and traction force.
Strong scalability to easily achieve a variety of system linkage control.
ALPR (automatic License Plate Recognition) (optional).
Multiple devices networked control functions (optional).

Software System :

Using Line Array CCD Scanning Technology Dynamic Imaging;
Scan resolution: 2048 line CCD
Chassis storage or loading time: < 1 second;
The bottom image display: a horizontal display;
Chassis image storage format: Standard BMP image format or JPEG;
System interface language: can be customized;
Display resolution: To adapt a variety of display resolution;
Transmission interface of the bottom image data: RJ45 network;
Display of scene image: ≥1 road
The test of Image retrieval function: store the bottom of car and the image of license plate according to Information retrieval of the date ,time and license plate number;
Resolution of the bottom image: >12000 x 6144;
The bottom image automatic shooting: when vehicle speed to 1-50km/h through the under-body scanner, system will display the image in the 1s, while the vehicle in the under-body scanner image acquisition region stillness must time continue to through the under-body scanner and bottom images show the intact;
Automatic image storage, delete functions: automatic deletion of expired pictures;
Image quality adjustment function: The adjustment of saturation, contrast, balance, sharpness for under-body or license plate image; And carrying out amplification and reduce . the amplification factor is 16, and can be used to enlarge the local display;

Vehicle Image Scanner, Control Equipment and Environmental Adaptability

Scan mode: full auto, non external trigger condition scan mode
The maximum of scan rate: 18kHz
The detection speed: 1-60km/h, advise ≤ 30km/h;
Field of view: 170 degrees
Scanner data line: 10 m; (customizable length)
Auxiliary lighting: 160W
Lighting components: two single sealed LED surface light source; life: 50000h
The bottom image scanner: using a unique open wide design of field of vehicle image acquisition technology
Load capacity: >30T
Waterproof level: IP68 meet all day work
Scanning device weight: 28 Kg
Scanning device volume: 450 x 400 x 88mm
Communication interface: RJ45
Storage temperature；•40° ~ 75°
Operating temperature: -10° ~ +60°
Operating power : 110~240V AC,50~60HZ
